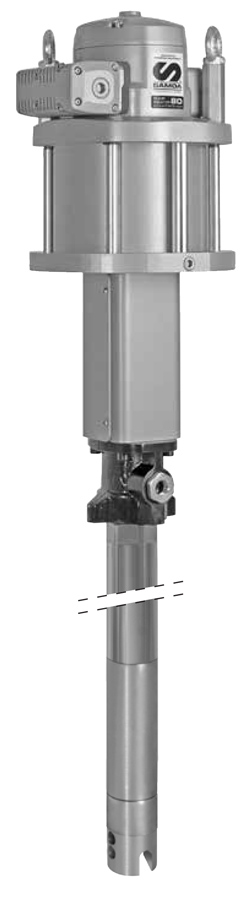

Ultra high pressure double acting pump. 200:1 pressure ratio pump designed for use in oil and gas wells in wireline and plug valve applications.
- In wireline applications, these pumps are used to seal against the well external pressure, preventing the tube from collapsing as the well is perforated.
- In plug valve applications, these pumps pump heavy grease into "christmas tree valves", sealing any gas leak.
FLUIDS HANDLED
- Grease up to NLGI-2.
- High viscosity oil.
MARKETS SERVED
- Mining and construction.
- In-plant grease transfer.
- Rail road and mass transit.
FEATURES
- 8" air motor effective diameter for maximum power.
- Well proven, no stall and no ice forming air motor.
- Reinforced construction, to stand up to 1.200 bar pressure.
- Reliable fluid seals.
- Divorced designed with steel covers to protect pump rod from tough environment.
Available Models & Accessories

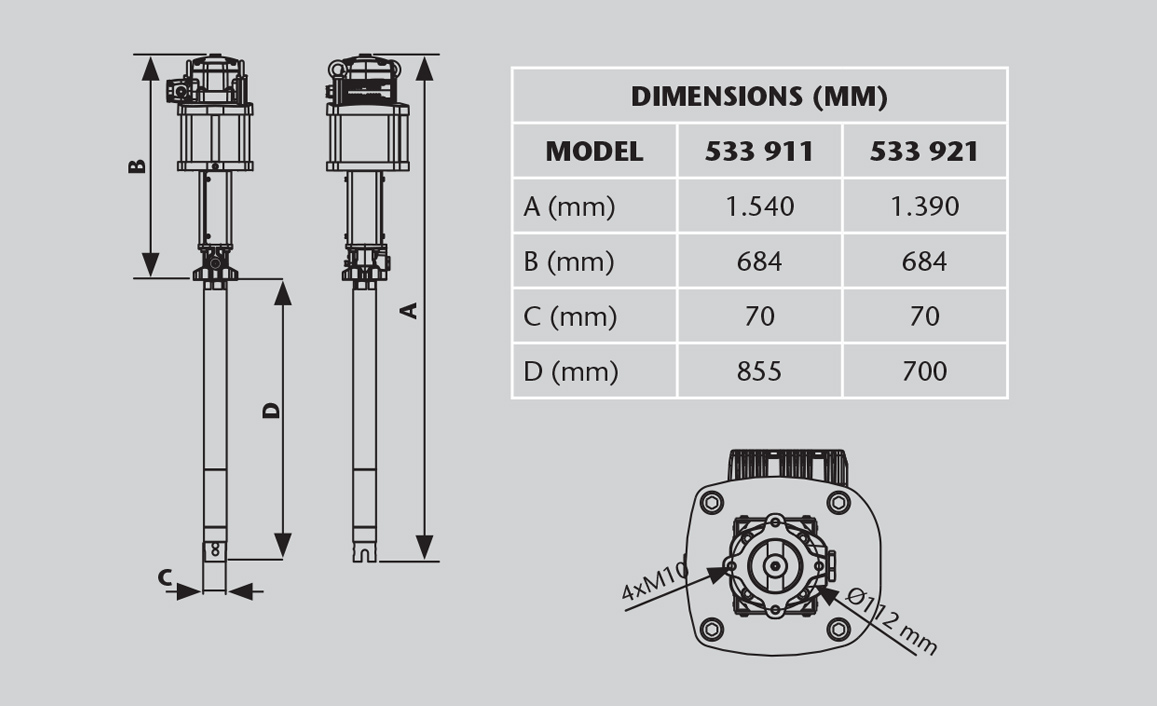

| PART No. | APPLICATION | PUMP TUBE HEIGHT | TOTAL HEIGHT | WEIGHT |
| 533 911 | 185 kg (400 lb) drum. NPT connection. | 855 mm | 1,539 mm | 59 kg |
| 533 921 | 50 kg (120 lb) drum. NPT connection. | 700 mm | 1,384 mm | 55 kg |
Technical Data
| Pump pressure ratio | 200:1 |
| Maximum free flow | 17 kg/min (38 lb/min) |
| Air pressure operating range | 2 - 6 bar (30 - 90 psi) |
| Maximum outlet pressure | 1,200 bar (18,000 psi) |
| Air motor effective diameter | 200 mm (8") |
| Air motor stroke | 100 mm (4") |
| Air consumption (1) | 1,300 Nl/min (46 scfm) |
| Air inlet | 3/4” NPT (F) |
| Fluid outlet | Autoclave Engineers Medium Pressure Port for 9/16“ Tube,13/16 - 16 Thread |
| Wetted and seal materials | Carbon Steel / Cast Iron / Bronze / PEEK / Teflon® |
| Noise level (2) | 80 dB |
- Air consumption at 5 bar (70 psi) air pressure, NLGI-2 grease at 20 ºC (68 ºF) and 40 cpm.
- Noise level measured at 1 m (3’) from the pump, 6 bar (87 psi) air pressure and free delivery.

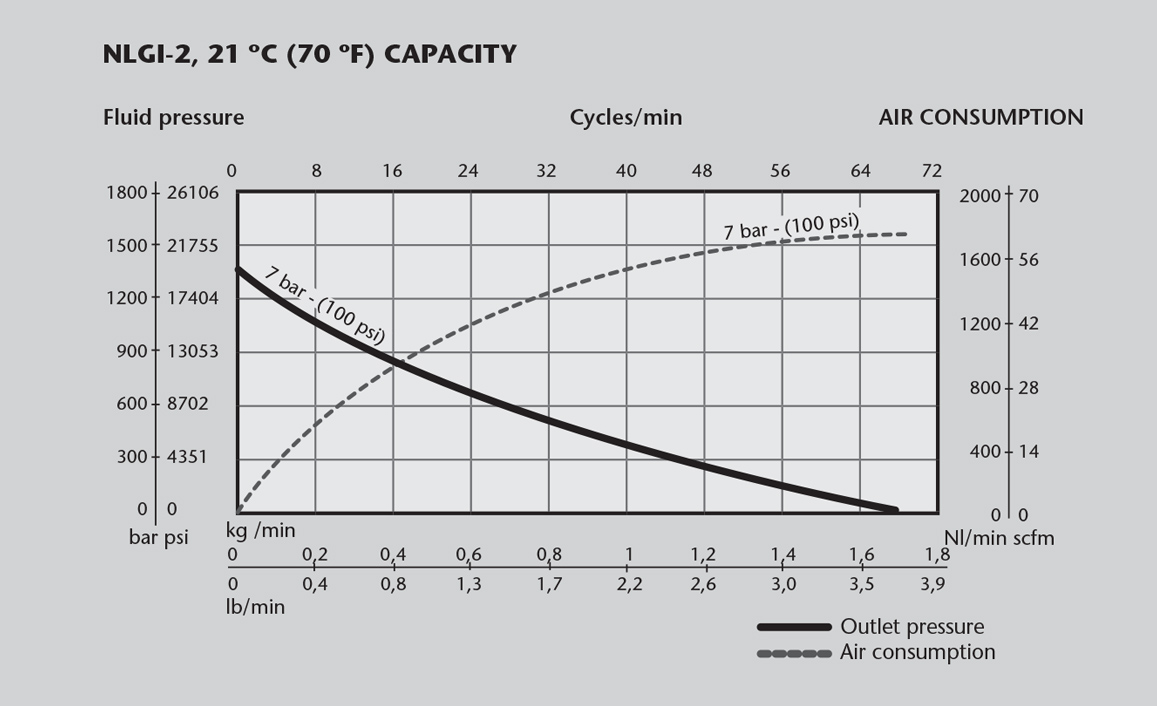

Technical Graphs
